Test the Step Functions

In this step we will test the Step Functions that created previously.

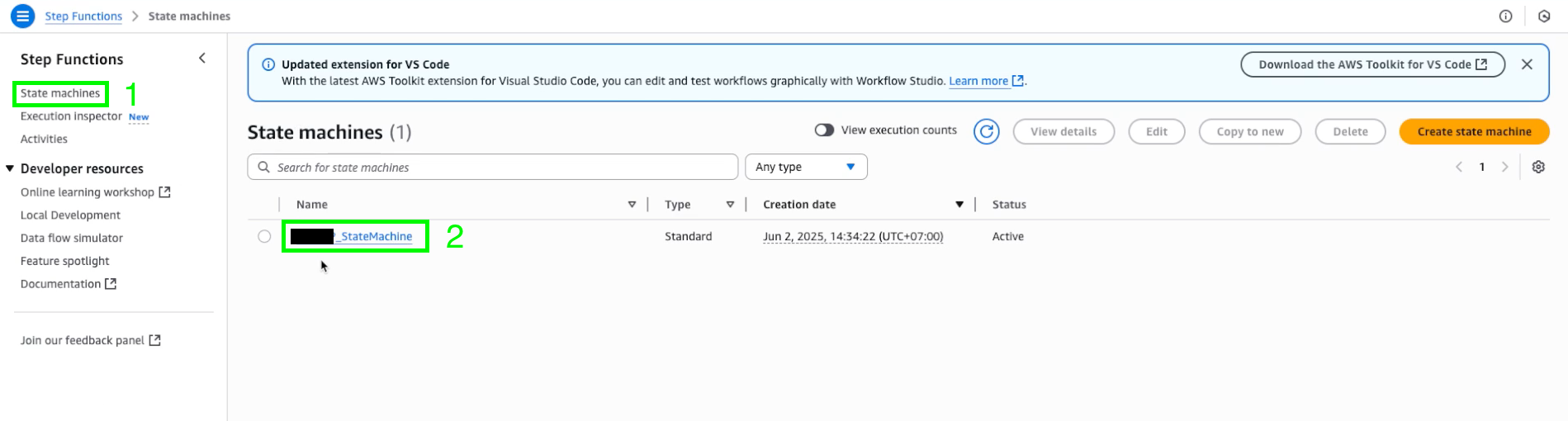

  1. Go to the Step Functions service and on States machines select the name of the newly created one PREFIX_StateMachine.

    Test SF

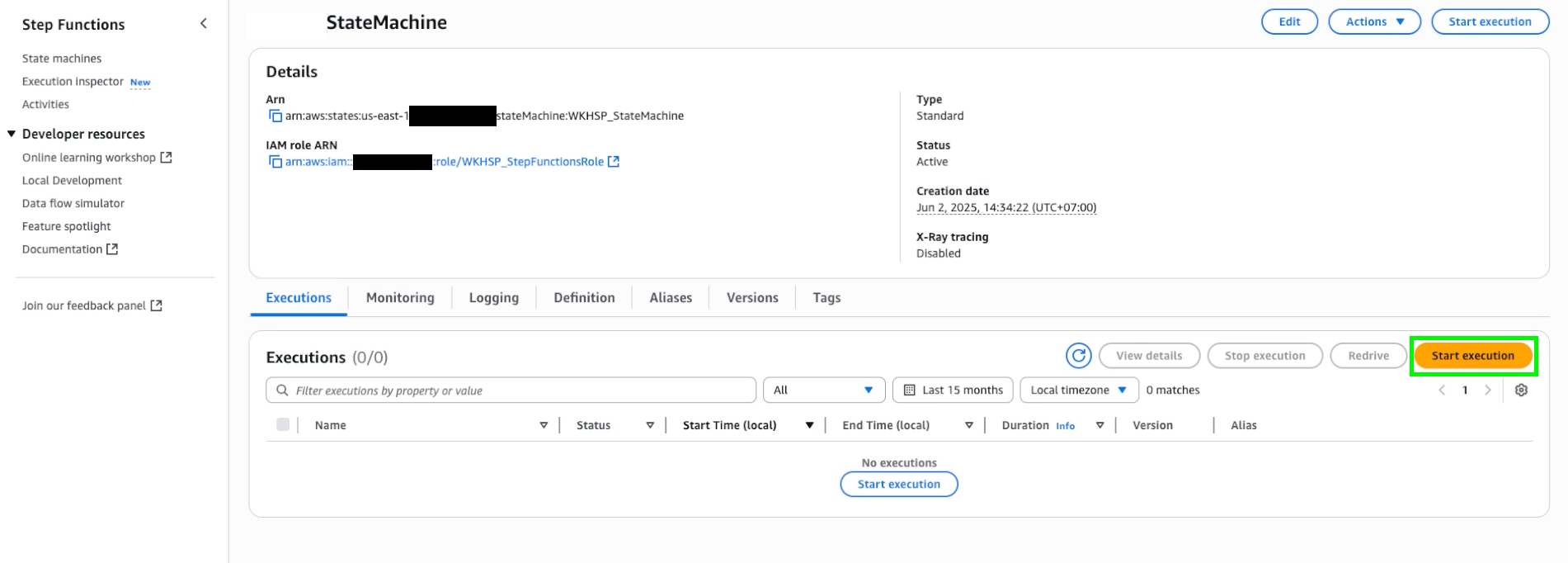

  2. Select Start execution

    Test SF

    • Copy this JSON below and paste in Input, this JSON will need some modifications before you can run it.
    {
    "version": "0",
    "id": "cd2d702e-ab31-411b-9344-793ce56b1bc7",
    "detail-type": "GuardDuty Finding",
    "source": "aws.guardduty",
    "account": "<<Account ID>>",
    "time": "1970-01-01T00:00:00Z",
    "region": "us-east-1",
    "resources": [],

    "detail": {
        "schemaVersion": "2.0",
        "accountId": "<<Account ID>>",
        "region": "us-east-1",
        "partition": "aws",
        "id": "b0baa89de4ab301f8d0a8c9a3dfd5726",
        "arn": "arn:aws:guardduty:us-east-1:<<Account ID>>:detector/feb3c048238f682b8902532ec100b3fb/finding/b0baa89de4ab301f8d0a8c9a3dfd5726",
        "title": "Bitcoin-related domain name queried by EC2 instance <<Instance ID>>.",
        "type": "CryptoCurrency:EC2/BitcoinTool.B!DNS",
        "severity": 8,
        "resource": {
            "instanceDetails": {
                "instanceId": "<<Instance ID>>"
            }
        }
    }
}

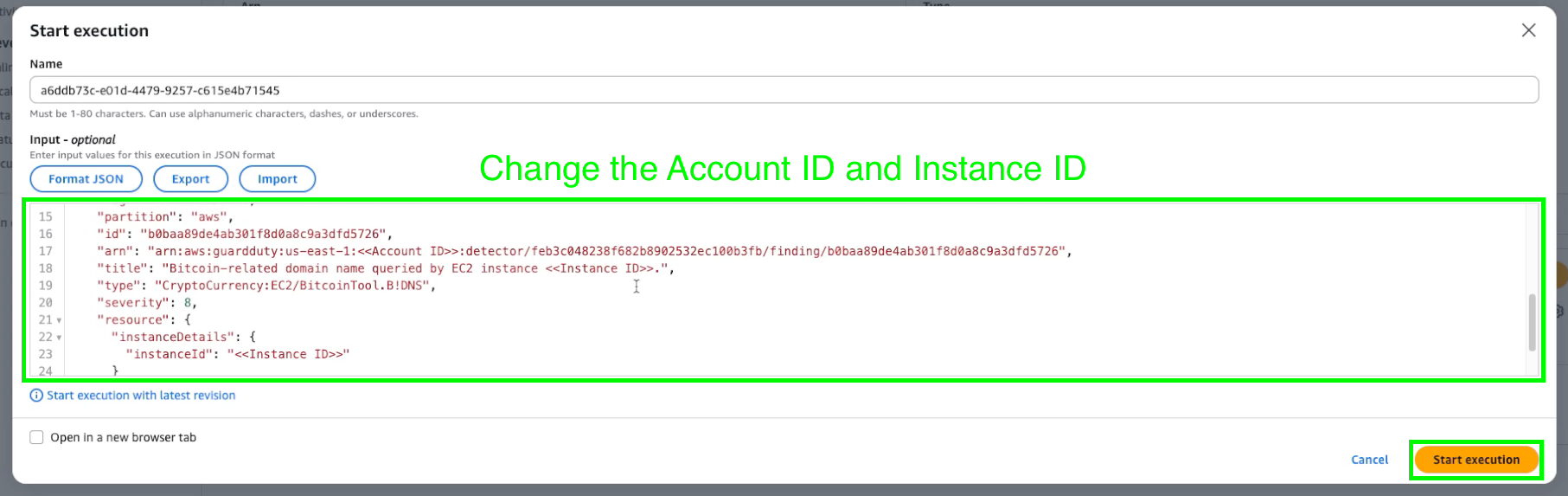

    • Replace the AccountID for yours.

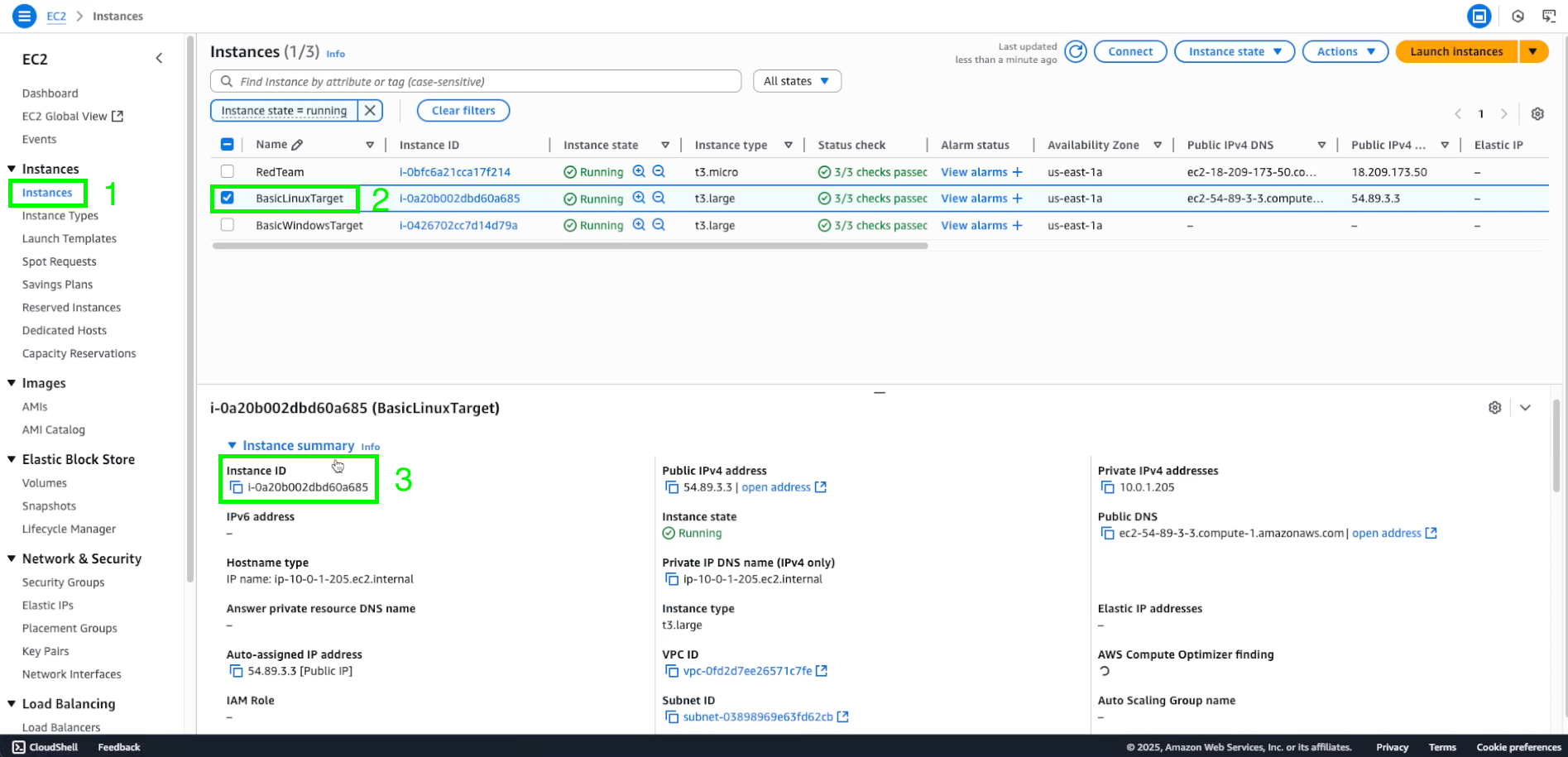

    • Replace the Instance ID with the ID of the BasicLinuxTarget instance deployed by the CloudFormation template (below is how you can find the Instance ID).

    Test SF

    • After replace all the Account ID and Instance ID.

    Test SF

    • Verify status before execution: check on the EC2 console what is the current status of the instance “BasicLinuxTarget”
    Can you answer the following questions?
    • Which Security Group does it have?
    • Which tags does it have ?
    • Is there any snapshot related to the instance?
    • Press the Start execution, and verify the status after execution: of the instance “BasicLinuxTarget”

    Can you answer the following questions?

    • Has the Security Group changed?
    • Have the tags changed?
    • Has any new Snapshot been created?

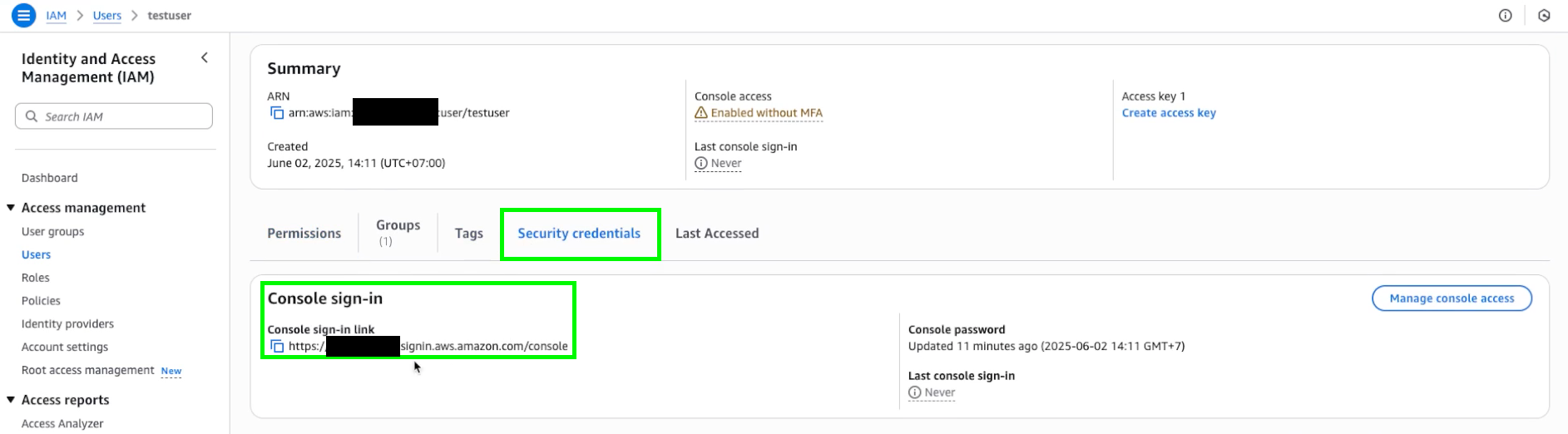

    • Log in with a different Internet browser or using private mode, use the link on the IAM Dashboard (as seen below) and verify if you can delete the EC2 with the IAM user testuser that you created during the Setup steps.

        • Are you able to delete the instance?
    Test SF

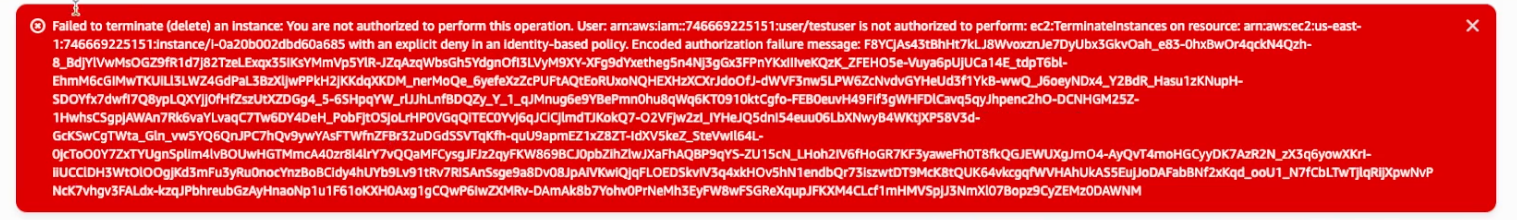

    • When you use the testuser and try to delete the instance “BasicLinuxTarget” it should have this error.

    Test SF

  3. Test the State Machine with a different severity

    • Follow the same steps as before but change the severity field on the JSON event from 8 to 7.
      • Is the workflow executed still the same?
      • What changed?

When you are done with all the steps, head to the next part of the Workshop which is Create a EventBridge Rule
