Step Function response

Configure for Step Function response

In this section you will learn how to implement an automated incident response action via a workflow implemented with Step Functions. The advantages of this approach are:

  • No timeout for the actions to be performed.
  • Almost all the API calls for the AWS Services are implemented and can be directly called without a line of code.
  • Graphical workflow definition.
  • More control over the different paths.

The steps we will be performing for this alternative are:

  • Deploy a CloudFormation template that will create all the necessary resources.
  • Accept the SNS subscription in order to receive the email notifications.
  • Test the State Machine.
  • Create an EventBridge rule that will call the State Machine based on the GuardDuty findings.

The architecture for this alternative is the following: SF

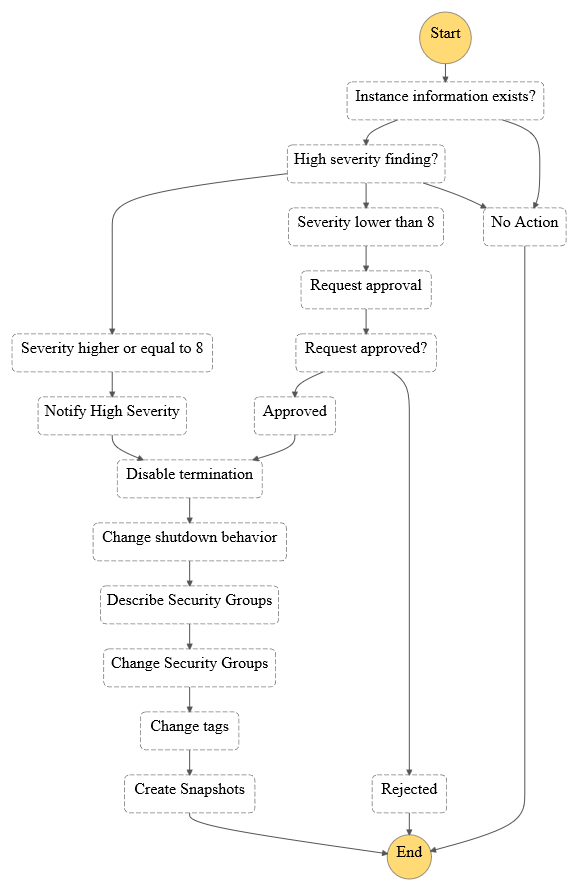

And the Step Function workflow graph is the following: SF

A brief explanation of the workflow presented:

  1. Check if an instance ID is present on the GuardDuty finding

  2. Depending on the GuardDuty finding severity:

    • If the severity is higher or equal to 8 then a SNS notification is sent to the registered email (the one used during the CloudFormation deployment).
    • If the severity is lower than 8 then a Manual Approval email is sent to the registered email:
      • If the Manual Approval is Rejected then the workflow is finished and no actions is taken.
      • If the Manual Approval is Approved then the following actions are taken.

  3. Disable termination is applied to the EC2 instance.

  4. Shutdown behavior is changed to the instance.

  5. The ForensicSG Security Group is applied to the instance.

  6. A tag isolated is applied to the instance.

  7. The workflow is finished.

If done reading, then head to the next step which is Deploy the CloudFormation stack
